TSMixer

TSMixer: MLP-based multivariate forecasting with time and feature mixing. Stacked mixing layers learn temporal and cross-sectional representations jointly.

Time-Series Mixer (TSMixer) is a MLP-based multivariate time-series forecasting model. TSMixer jointly learns temporal and cross-sectional representations of the time-series by repeatedly combining time- and feature information using stacked mixing layers. A mixing layer consists of a sequential time- and feature Multi Layer Perceptron (MLP). Note: this model cannot handle exogenous inputs. If you want to use additional exogenous inputs, use TSMixerx.

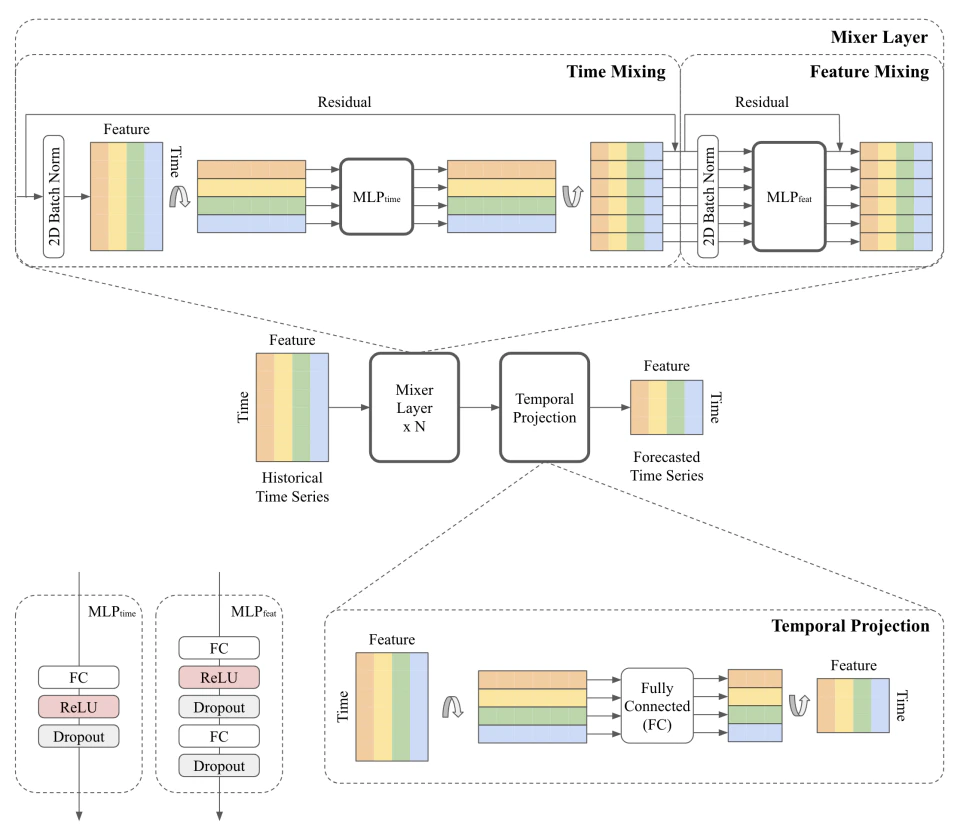

Figure 1. TSMixer for multivariate time series forecasting.

1. TSMixer

TSMixer

TSMixer(
    h,
    input_size,
    n_series,
    futr_exog_list=None,
    hist_exog_list=None,
    stat_exog_list=None,
    exclude_insample_y=False,
    n_block=2,
    ff_dim=64,
    dropout=0.9,
    revin=True,
    loss=MAE(),
    valid_loss=None,
    max_steps=1000,
    learning_rate=0.001,
    num_lr_decays=-1,
    early_stop_patience_steps=-1,
    val_check_steps=100,
    batch_size=32,
    valid_batch_size=None,
    windows_batch_size=32,
    inference_windows_batch_size=32,
    start_padding_enabled=False,
    training_data_availability_threshold=0.0,
    step_size=1,
    scaler_type="identity",
    random_seed=1,
    drop_last_loader=False,
    alias=None,
    optimizer=None,
    optimizer_kwargs=None,
    lr_scheduler=None,
    lr_scheduler_kwargs=None,
    dataloader_kwargs=None,
    **trainer_kwargs
)

Bases: BaseModel

TSMixer

Time-Series Mixer (TSMixer) is a MLP-based multivariate time-series forecasting model. TSMixer jointly learns temporal and cross-sectional representations of the time-series by repeatedly combining time- and feature information using stacked mixing layers. A mixing layer consists of a sequential time- and feature Multi Layer Perceptron (MLP).

Parameters:

Name	Type	Description	Default
h	int	forecast horizon.	required
input_size	int	considered autorregresive inputs (lags), y=[1,2,3,4] input_size=2 -> lags=[1,2].	required
n_series	int	number of time-series.	required
futr_exog_list	str list	future exogenous columns.	None
hist_exog_list	str list	historic exogenous columns.	None
stat_exog_list	str list	static exogenous columns.	None
exclude_insample_y	bool	if True excludes the target variable from the input features.	False
n_block	int	number of mixing layers in the model.	2
ff_dim	int	number of units for the second feed-forward layer in the feature MLP.	64
dropout	float	dropout rate between (0, 1) .	0.9
revin	bool	if True uses Reverse Instance Normalization to process inputs and outputs.	True
loss	PyTorch module	instantiated train loss class from losses collection.	MAE()
valid_loss	PyTorch module	instantiated valid loss class from losses collection.	None
max_steps	int	maximum number of training steps.	1000
learning_rate	float	Learning rate between (0, 1).	0.001
num_lr_decays	int	Number of learning rate decays, evenly distributed across max_steps.	-1
early_stop_patience_steps	int	Number of validation iterations before early stopping.	-1
val_check_steps	int	Number of training steps between every validation loss check.	100
batch_size	int	number of different series in each batch.	32
valid_batch_size	int	number of different series in each validation and test batch, if None uses batch_size.	None
windows_batch_size	int	number of windows to sample in each training batch, default uses all.	32
inference_windows_batch_size	int	number of windows to sample in each inference batch, -1 uses all.	32
start_padding_enabled	bool	if True, the model will pad the time series with zeros at the beginning, by input size.	False
training_data_availability_threshold	Union[float, List[float]]	minimum fraction of valid data points required for training windows. Single float applies to both insample and outsample; list of two floats specifies [insample_fraction, outsample_fraction]. Default 0.0 allows windows with only 1 valid data point (current behavior).	0.0
step_size	int	step size between each window of temporal data.	1
scaler_type	str	type of scaler for temporal inputs normalization see temporal scalers.	‘identity’
random_seed	int	random_seed for pytorch initializer and numpy generators.	1
drop_last_loader	bool	if True TimeSeriesDataLoader drops last non-full batch.	False
alias	str	optional, Custom name of the model.	None
optimizer	Subclass of ‘torch.optim.Optimizer’	optional, user specified optimizer instead of the default choice (Adam).	None
optimizer_kwargs	dict	optional, list of parameters used by the user specified optimizer.	None
lr_scheduler	Subclass of ‘torch.optim.lr_scheduler.LRScheduler’	optional, user specified lr_scheduler instead of the default choice (StepLR).	None
lr_scheduler_kwargs	dict	optional, list of parameters used by the user specified lr_scheduler.	None
dataloader_kwargs	dict	optional, list of parameters passed into the PyTorch Lightning dataloader by the TimeSeriesDataLoader.	None
**trainer_kwargs	int	keyword trainer arguments inherited from PyTorch Lighning’s trainer.

TSMixer.fit

fit(
    dataset, val_size=0, test_size=0, random_seed=None, distributed_config=None
)

Fit.

The fit method, optimizes the neural network’s weights using the initialization parameters (learning_rate, windows_batch_size, …) and the loss function as defined during the initialization. Within fit we use a PyTorch Lightning Trainer that inherits the initialization’s self.trainer_kwargs, to customize its inputs, see PL’s trainer arguments.

The method is designed to be compatible with SKLearn-like classes and in particular to be compatible with the StatsForecast library.

By default the model is not saving training checkpoints to protect disk memory, to get them change enable_checkpointing=True in __init__.

Parameters:

Name	Type	Description	Default
dataset	TimeSeriesDataset	NeuralForecast’s TimeSeriesDataset, see documentation.	required
val_size	int	Validation size for temporal cross-validation.	0
random_seed	int	Random seed for pytorch initializer and numpy generators, overwrites model.init’s.	None
test_size	int	Test size for temporal cross-validation.	0

Returns:

Type	Description
None

TSMixer.predict

predict(
    dataset,
    test_size=None,
    step_size=1,
    random_seed=None,
    quantiles=None,
    h=None,
    explainer_config=None,
    **data_module_kwargs
)

Predict.

Neural network prediction with PL’s Trainer execution of predict_step.

Parameters:

Name	Type	Description	Default
dataset	TimeSeriesDataset	NeuralForecast’s TimeSeriesDataset, see documentation.	required
test_size	int	Test size for temporal cross-validation.	None
step_size	int	Step size between each window.	1
random_seed	int	Random seed for pytorch initializer and numpy generators, overwrites model.init’s.	None
quantiles	list	Target quantiles to predict.	None
h	int	Prediction horizon, if None, uses the model’s fitted horizon. Defaults to None.	None
explainer_config	dict	configuration for explanations.	None
**data_module_kwargs	dict	PL’s TimeSeriesDataModule args, see documentation.

Returns:

Type	Description
None

Usage Examples

Train model and forecast future values with predict method.

import pandas as pd
import matplotlib.pyplot as plt

from neuralforecast import NeuralForecast
from neuralforecast.models import TSMixer
from neuralforecast.utils import AirPassengersPanel, AirPassengersStatic
from neuralforecast.losses.pytorch import MAE, MQLoss

Y_train_df = AirPassengersPanel[AirPassengersPanel.ds<AirPassengersPanel['ds'].values[-12]].reset_index(drop=True) # 132 train
Y_test_df = AirPassengersPanel[AirPassengersPanel.ds>=AirPassengersPanel['ds'].values[-12]].reset_index(drop=True) # 12 test

model = TSMixer(h=12,
                input_size=24,
                n_series=2,
                n_block=4,
                ff_dim=4,
                dropout=0,
                revin=True,
                scaler_type='standard',
                max_steps=500,
                early_stop_patience_steps=-1,
                val_check_steps=5,
                learning_rate=1e-3,
                loss=MQLoss(),
                batch_size=32
                )

fcst = NeuralForecast(models=[model], freq='ME')
fcst.fit(df=Y_train_df, static_df=AirPassengersStatic, val_size=12)
forecasts = fcst.predict(futr_df=Y_test_df)

# Plot predictions
fig, ax = plt.subplots(1, 1, figsize = (20, 7))
Y_hat_df = forecasts.reset_index(drop=False).drop(columns=['unique_id','ds'])
plot_df = pd.concat([Y_test_df, Y_hat_df], axis=1)
plot_df = pd.concat([Y_train_df, plot_df])

plot_df = plot_df[plot_df.unique_id=='Airline2'].drop('unique_id', axis=1)
plt.plot(plot_df['ds'], plot_df['y'], c='black', label='True')
plt.plot(plot_df['ds'], plot_df['TSMixer-median'], c='blue', label='median')
plt.fill_between(x=plot_df['ds'][-12:],
                 y1=plot_df['TSMixer-lo-90'][-12:].values,
                 y2=plot_df['TSMixer-hi-90'][-12:].values,
                 alpha=0.4, label='level 90')
ax.set_title('AirPassengers Forecast', fontsize=22)
ax.set_ylabel('Monthly Passengers', fontsize=20)
ax.set_xlabel('Year', fontsize=20)
ax.legend(prop={'size': 15})
ax.grid()

Using cross_validation to forecast multiple historic values.

fcst = NeuralForecast(models=[model], freq='M')
forecasts = fcst.cross_validation(df=AirPassengersPanel, static_df=AirPassengersStatic, n_windows=2, step_size=12)

# Plot predictions
fig, ax = plt.subplots(1, 1, figsize = (20, 7))
Y_hat_df = forecasts.loc['Airline1']
Y_df = AirPassengersPanel[AirPassengersPanel['unique_id']=='Airline1']

plt.plot(Y_df['ds'], Y_df['y'], c='black', label='True')
plt.plot(Y_hat_df['ds'], Y_hat_df['TSMixer-median'], c='blue', label='Forecast')
ax.set_title('AirPassengers Forecast', fontsize=22)
ax.set_ylabel('Monthly Passengers', fontsize=20)
ax.set_xlabel('Year', fontsize=20)
ax.legend(prop={'size': 15})
ax.grid()

2. Auxiliary Functions

2.1 Mixing layers

A mixing layer consists of a sequential time- and feature Multi Layer Perceptron (MLP).

MixingLayer

MixingLayer(n_series, input_size, dropout, ff_dim)

Bases: Module

MixingLayer

FeatureMixing

FeatureMixing(n_series, input_size, dropout, ff_dim)

Bases: Module

FeatureMixing

TemporalMixing

TemporalMixing(n_series, input_size, dropout)

Bases: Module

TemporalMixing
