HINT

HINT: Hierarchical Mixture Networks for coherent probabilistic forecasting. Combines neural architectures with reconciliation for hierarchical time series.

The Hierarchical Mixture Networks (HINT) are a highly modular framework that combines SoTA neural forecast architectures with task-specialized mixture probability and advanced hierarchical reconciliation strategies. This powerful combination allows HINT to produce accurate and coherent probabilistic forecasts.

HINT’s incorporates a TemporalNorm module into any neural forecast architecture, the module normalizes inputs into the network’s non-linearities operating range and recomposes its output’s scales through a global skip connection, improving accuracy and training robustness. HINT ensures the forecast coherence via bootstrap sample reconciliation that restores the aggregation constraints into its base samples.

References

• Kin G. Olivares, David Luo, Cristian Challu, Stefania La Vattiata, Max Mergenthaler, Artur Dubrawski (2023). “HINT: Hierarchical Mixture Networks For Coherent Probabilistic Forecasting”. Neural Information Processing Systems, submitted. Working Paper version available at arxiv.
• Kin G. Olivares, O. Nganba Meetei, Ruijun Ma, Rohan Reddy, Mengfei Cao, Lee Dicker (2022).”Probabilistic Hierarchical Forecasting with Deep Poisson Mixtures”. International Journal Forecasting, accepted paper available at arxiv.
• Kin G. Olivares, Federico Garza, David Luo, Cristian Challu, Max Mergenthaler, Souhaib Ben Taieb, Shanika Wickramasuriya, and Artur Dubrawski (2022). “HierarchicalForecast: A reference framework for hierarchical forecasting in python”. Journal of Machine Learning Research, submitted, abs/2207.03517, 2022b.

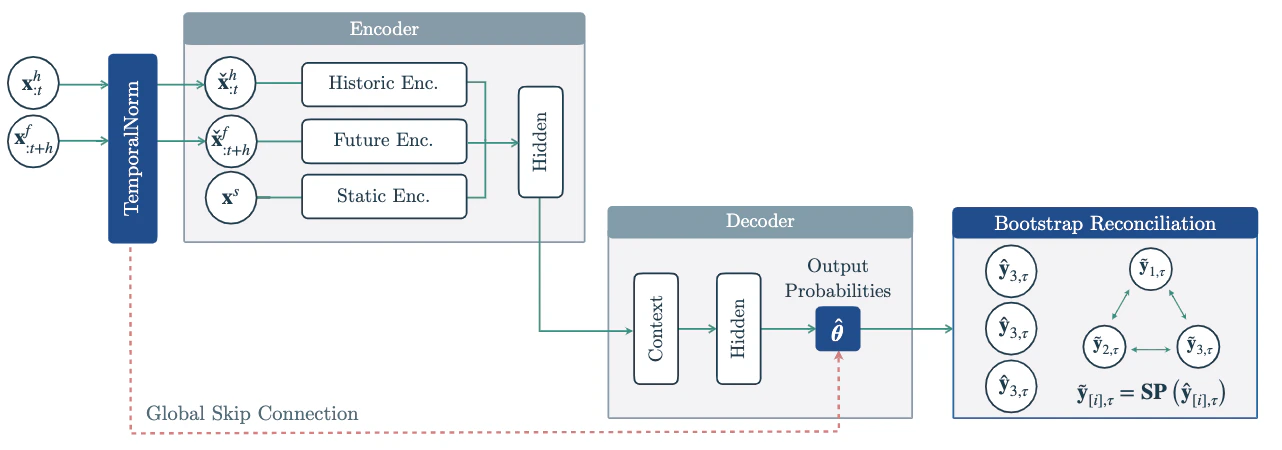

Figure 1. Hierarchical Mixture Networks (HINT).

1. HINT

HINT

HINT(h, S, model, reconciliation, alias=None)

HINT

The Hierarchical Mixture Networks (HINT) are a highly modular framework that combines SoTA neural forecast architectures with a task-specialized mixture probability and advanced hierarchical reconciliation strategies. This powerful combination allows HINT to produce accurate and coherent probabilistic forecasts.

HINT’s incorporates a TemporalNorm module into any neural forecast architecture, the module normalizes inputs into the network’s non-linearities operating range and recomposes its output’s scales through a global skip connection, improving accuracy and training robustness. HINT ensures the forecast coherence via bootstrap sample reconciliation that restores the aggregation constraints into its base samples.

• Identity

Parameters:

Name	Type	Description	Default
h	int	Forecast horizon.	required
model	NeuralForecast model	Instantiated model class from architecture collection.	required
S	ndarray	Dumming matrix of size (base, bottom) see HierarchicalForecast’s aggregate method.	required
reconciliation	str	HINT’s reconciliation method from [‘BottomUp’, ‘MinTraceOLS’, ‘MinTraceWLS’].	required
alias	str	Custom name of the model.	None

HINT.fit

fit(
    dataset, val_size=0, test_size=0, random_seed=None, distributed_config=None
)

HINT.fit

HINT trains on the entire hierarchical dataset, by minimizing a composite log likelihood objective. HINT framework integrates TemporalNorm into the neural forecast architecture for a scale-decoupled optimization that robustifies cross-learning the hierachy’s series scales.

Parameters:

Name	Type	Description	Default
dataset	TimeSeriesDataset	NeuralForecast’s TimeSeriesDataset see details here	required
val_size	int	size of the validation set, (default 0).	0
test_size	int	size of the test set, (default 0).	0
random_seed	int	random seed for the prediction.	None

Returns:

Name	Type	Description
self		A fitted base NeuralForecast model.

HINT.predict

predict(dataset, step_size=1, random_seed=None, **data_module_kwargs)

HINT.predict

After fitting a base model on the entire hierarchical dataset. HINT restores the hierarchical aggregation constraints using bootstrapped sample reconciliation.

Parameters:

Name	Type	Description	Default
dataset	TimeSeriesDataset	NeuralForecast’s TimeSeriesDataset see details here	required
step_size	int	steps between sequential predictions, (default 1).	1
random_seed	int	random seed for the prediction.	None
**data_kwarg		additional parameters for the dataset module.	required

Returns:

Name	Type	Description
y_hat		numpy predictions of the NeuralForecast model.

Usage Example

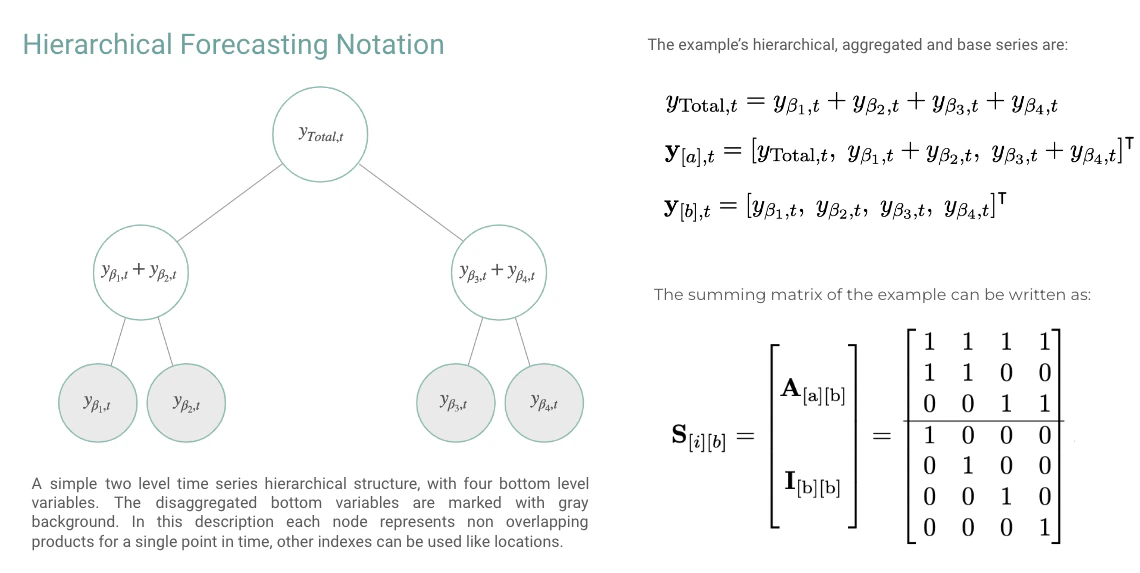

In this example we will use HINT for the hierarchical forecast task, a multivariate regression problem with aggregation constraints. The aggregation constraints can be compactcly represented by the summing matrix $\mathbf{S}_{[i][b]}$, the Figure belows shows an example.

In this example we will make coherent predictions for the TourismL dataset.

Outline:

1. Import packages
2. Load hierarchical dataset
3. Fit and Predict HINT
4. Forecast Plot

import matplotlib.pyplot as plt

from neuralforecast.losses.pytorch import GMM, sCRPS
from datasetsforecast.hierarchical import HierarchicalData

# Auxiliary sorting
def sort_df_hier(Y_df, S_df):
    # NeuralForecast core, sorts unique_id lexicographically
    # by default, this class matches S_df and Y_hat_df order.
    Y_df.unique_id = Y_df.unique_id.astype('category')
    Y_df.unique_id = Y_df.unique_id.cat.set_categories(S_df.index)
    Y_df = Y_df.sort_values(by=['unique_id', 'ds'])
    return Y_df

# Load TourismSmall dataset
horizon = 12
Y_df, S_df, tags = HierarchicalData.load('./data', 'TourismLarge')
Y_df['ds'] = pd.to_datetime(Y_df['ds'])
Y_df = sort_df_hier(Y_df, S_df)
level = [80,90]

# Instantiate HINT
# BaseNetwork + Distribution + Reconciliation
nhits = NHITS(h=horizon,
              input_size=24,
              loss=GMM(n_components=10, level=level),
              max_steps=2000,
              early_stop_patience_steps=10,
              val_check_steps=50,
              scaler_type='robust',
              learning_rate=1e-3,
              valid_loss=sCRPS(level=level))

model = HINT(h=horizon, S=S_df.values,
             model=nhits,  reconciliation='BottomUp')

# Fit and Predict
nf = NeuralForecast(models=[model], freq='MS')
Y_hat_df = nf.cross_validation(df=Y_df, val_size=12, n_windows=1)
Y_hat_df = Y_hat_df.reset_index()

# Plot coherent probabilistic forecast
unique_id = 'TotalAll'
Y_plot_df = Y_df[Y_df.unique_id==unique_id]
plot_df = Y_hat_df[Y_hat_df.unique_id==unique_id]
plot_df = Y_plot_df.merge(plot_df, on=['ds', 'unique_id'], how='left')
n_years = 5

plt.plot(plot_df['ds'][-12*n_years:], plot_df['y_x'][-12*n_years:], c='black', label='True')
plt.plot(plot_df['ds'][-12*n_years:], plot_df['HINT'][-12*n_years:], c='purple', label='mean')
plt.plot(plot_df['ds'][-12*n_years:], plot_df['HINT-median'][-12*n_years:], c='blue', label='median')
plt.fill_between(x=plot_df['ds'][-12*n_years:],
                 y1=plot_df['HINT-lo-90'][-12*n_years:].values,
                 y2=plot_df['HINT-hi-90'][-12*n_years:].values,
                 alpha=0.4, label='level 90')
plt.legend()
plt.grid()
plt.plot()

2. Reconciliation Methods

get_identity_P

get_identity_P(S)

get_bottomup_P

get_bottomup_P(S)

BottomUp Reconciliation Matrix.

Creates BottomUp hierarchical “projection” matrix is defined as:

$$\mathbf{P}_{\text{BU}} = [\mathbf{0}_{\mathrm{[b],[a]}}\;|\;\mathbf{I}_{\mathrm{[b][b]}}]$$

Parameters:

Name	Type	Description	Default
S	ndarray	Summing matrix of size (base, bottom).	required

Returns:

Type	Description
np.ndarray: Reconciliation matrix of size (bottom, base).

get_mintrace_ols_P

get_mintrace_ols_P(S)

MinTraceOLS Reconciliation Matrix.

Creates MinTraceOLS reconciliation matrix as proposed by Wickramasuriya et al.

$$\mathbf{P}_{\text{MinTraceOLS}}=\left(\mathbf{S}^{\intercal}\mathbf{S}\right)^{-1}\mathbf{S}^{\intercal}$$

Parameters:

Name	Type	Description	Default
S	ndarray	Summing matrix of size (base, bottom).	required

Returns:

Type	Description
np.ndarray: Reconciliation matrix of size (bottom, base).

get_mintrace_wls_P

get_mintrace_wls_P(S)

MinTraceOLS Reconciliation Matrix.

Creates MinTraceOLS reconciliation matrix as proposed by Wickramasuriya et al. Depending on a weighted GLS estimator and an estimator of the covariance matrix of the coherency errors $\\mathbf{W}\_{h}$.

$$\mathbf{W}_{h} = \mathrm{Diag}(\mathbf{S} \mathbb{1}_{[b]})$$ $$\mathbf{P}_{\text{MinTraceWLS}}=\left(\mathbf{S}^{\intercal}\mathbf{W}_{h}\mathbf{S}\right)^{-1} \mathbf{S}^{\intercal}\mathbf{W}^{-1}_{h}$$

Parameters:

Name	Type	Description	Default
S	ndarray	Summing matrix of size (base, bottom).	required

Returns:

Type	Description
np.ndarray: Reconciliation matrix of size (bottom, base).
