Hyperparameter Optimization | NeuralForecast

BaseAuto class for hyperparameter optimization in NeuralForecast. Integrates Optuna, HyperOpt, Dragonfly through Ray for automated model tuning with cross-validation.

Machine Learning forecasting methods are defined by many hyperparameters that control their behavior, with effects ranging from their speed and memory requirements to their predictive performance. For a long time, manual hyperparameter tuning prevailed. This approach is time-consuming, automated hyperparameter optimization methods have been introduced, proving more efficient than manual tuning, grid search, and random search.

The BaseAuto class offers shared API connections to hyperparameter optimization algorithms like Optuna, HyperOpt, Dragonfly among others through ray, which gives you access to grid search, bayesian optimization and other state-of-the-art tools like hyperband.

Comprehending the impacts of hyperparameters is still a precious skill, as it can help guide the design of informed hyperparameter spaces that are faster to explore automatically.

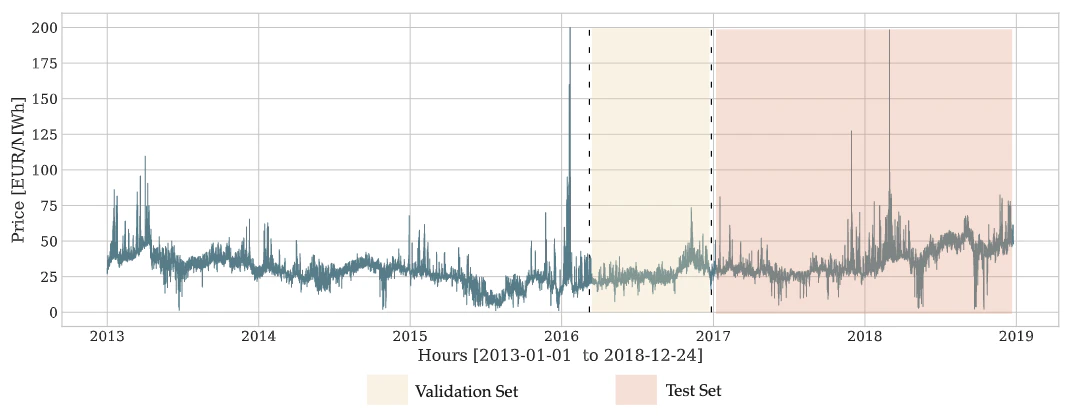

Figure 1. Example of dataset split (left), validation (yellow) and test (orange). The hyperparameter optimization guiding signal is obtained from the validation set.

BaseAuto

BaseAuto(
    cls_model,
    h,
    loss,
    valid_loss,
    config,
    search_alg=BasicVariantGenerator(random_state=1),
    num_samples=10,
    cpus=cpu_count(),
    gpus=torch.cuda.device_count(),
    refit_with_val=False,
    verbose=False,
    alias=None,
    backend="ray",
    callbacks=None,
)

Bases: LightningModule

Class for Automatic Hyperparameter Optimization, it builds on top of ray to give access to a wide variety of hyperparameter optimization tools ranging from classic grid search, to Bayesian optimization and HyperBand algorithm.

The validation loss to be optimized is defined by the config['loss'] dictionary value, the config also contains the rest of the hyperparameter search space.

It is important to note that the success of this hyperparameter optimization heavily relies on a strong correlation between the validation and test periods.

Parameters:

Name	Type	Description	Default
cls_model	PyTorch/PyTorchLightning model	See neuralforecast.models collection here.	required
h	int	Forecast horizon	required
loss	PyTorch module	Instantiated train loss class from losses collection.	required
valid_loss	PyTorch module	Instantiated valid loss class from losses collection.	required
config	dict or callable	Dictionary with ray.tune defined search space or function that takes an optuna trial and returns a configuration dict.	required
search_alg	ray.tune.search variant or optuna.sampler	For ray see https://docs.ray.io/en/latest/tune/api_docs/suggestion.html For optuna see https://optuna.readthedocs.io/en/stable/reference/samplers/index.html.	BasicVariantGenerator(random_state=1)
num_samples	int	Number of hyperparameter optimization steps/samples.	10
cpus	int	Number of cpus to use during optimization. Only used with ray tune.	cpu_count()
gpus	int	Number of gpus to use during optimization, default all available. Only used with ray tune.	device_count()
refit_with_val	bool	Refit of best model should preserve val_size.	False
verbose	bool	Track progress.	False
alias	str	Custom name of the model.	None
backend	str	Backend to use for searching the hyperparameter space, can be either ‘ray’ or ‘optuna’.	‘ray’
callbacks	list of callable	List of functions to call during the optimization process. ray reference: https://docs.ray.io/en/latest/tune/tutorials/tune-metrics.html optuna reference: https://optuna.readthedocs.io/en/stable	None

BaseAuto.fit

fit(
    dataset, val_size=0, test_size=0, random_seed=None, distributed_config=None
)

BaseAuto.fit

Perform the hyperparameter optimization as specified by the BaseAuto configuration dictionary config.

The optimization is performed on the TimeSeriesDataset using temporal cross validation with the validation set that sequentially precedes the test set.

Parameters:

Name	Type	Description	Default
dataset	NeuralForecast’s TimeSeriesDataset	NeuralForecast’s TimeSeriesDataset see details here	required
val_size	int	Size of temporal validation set (needs to be bigger than 0).	0
test_size	int	Size of temporal test set (default 0).	0
random_seed	int	Random seed for hyperparameter exploration algorithms, not yet implemented.	None

Returns:

Name	Type	Description
self		Fitted instance of BaseAuto with best hyperparameters and results.

BaseAuto.predict

predict(dataset, step_size=1, h=None, **data_kwargs)

BaseAuto.predict

Predictions of the best performing model on validation.

Parameters:

Name	Type	Description	Default
dataset	NeuralForecast’s TimeSeriesDataset	NeuralForecast’s TimeSeriesDataset see details here	required
step_size	int	Steps between sequential predictions, (default 1).	1
h	int	Prediction horizon, if None, uses the model’s fitted horizon. Defaults to None.	None
**data_kwarg		Additional parameters for the dataset module.	required

Returns:

Name	Type	Description
y_hat		Numpy predictions of the NeuralForecast model.

Usage Example

class RayLogLossesCallback(tune.Callback):
    def on_trial_complete(self, iteration, trials, trial, **info):
        result = trial.last_result
        print(40 * '-' + 'Trial finished' + 40 * '-')
        print(f'Train loss: {result["train_loss"]:.2f}. Valid loss: {result["loss"]:.2f}')
        print(80 * '-')

config = {
    "hidden_size": tune.choice([512]),
    "num_layers": tune.choice([3, 4]),
    "input_size": 12,
    "max_steps": 10,
    "val_check_steps": 5
}
auto = BaseAuto(h=12, loss=MAE(), valid_loss=MSE(), cls_model=MLP, config=config, num_samples=2, cpus=1, gpus=0, callbacks=[RayLogLossesCallback()])
auto.fit(dataset=dataset)
y_hat = auto.predict(dataset=dataset)
assert mae(Y_test_df['y'].values, y_hat[:, 0]) < 200

def config_f(trial):
    return {
        "hidden_size": trial.suggest_categorical('hidden_size', [512]),
        "num_layers": trial.suggest_categorical('num_layers', [3, 4]),
        "input_size": 12,
        "max_steps": 10,
        "val_check_steps": 5
    }

class OptunaLogLossesCallback:
    def __call__(self, study, trial):
        metrics = trial.user_attrs['METRICS']
        print(40 * '-' + 'Trial finished' + 40 * '-')
        print(f'Train loss: {metrics["train_loss"]:.2f}. Valid loss: {metrics["loss"]:.2f}')
        print(80 * '-')

auto2 = BaseAuto(h=12, loss=MAE(), valid_loss=MSE(), cls_model=MLP, config=config_f, search_alg=optuna.samplers.RandomSampler(), num_samples=2, backend='optuna', callbacks=[OptunaLogLossesCallback()])
auto2.fit(dataset=dataset)
assert isinstance(auto2.results, optuna.Study)
y_hat2 = auto2.predict(dataset=dataset)
assert mae(Y_test_df['y'].values, y_hat2[:, 0]) < 200

References

• James Bergstra, Remi Bardenet, Yoshua Bengio, and Balazs Kegl (2011). “Algorithms for Hyper-Parameter Optimization”. In: Advances in Neural Information Processing Systems. url: https://proceedings.neurips.cc/paper/2011/file/86e8f7ab32cfd12577bc2619bc635690-Paper.pdf
• Kirthevasan Kandasamy, Karun Raju Vysyaraju, Willie Neiswanger, Biswajit Paria, Christopher R. Collins, Jeff Schneider, Barnabas Poczos, Eric P. Xing (2019). “Tuning Hyperparameters without Grad Students: Scalable and Robust Bayesian Optimisation with Dragonfly”. Journal of Machine Learning Research. url: https://arxiv.org/abs/1903.06694
• Lisha Li, Kevin Jamieson, Giulia DeSalvo, Afshin Rostamizadeh, Ameet Talwalkar (2016). “Hyperband: A Novel Bandit-Based Approach to Hyperparameter Optimization”. Journal of Machine Learning Research. url: https://arxiv.org/abs/1603.06560
