TemporalNorm

TemporalNorm: Temporal normalization techniques for neural forecasting. Scalers include standard, robust, invariant, and RevIN for distribution shift handling.

Introduction

Temporal normalization has proven to be essential in neural forecasting tasks, as it enables network’s non-linearities to express themselves. Forecasting scaling methods take particular interest in the temporal dimension where most of the variance dwells, contrary to other deep learning techniques like BatchNorm that normalizes across batch and temporal dimensions, and LayerNorm that normalizes across the feature dimension. Currently we support the following techniques: std, median, norm, norm1, invariant, revin.

References

• Kin G. Olivares, David Luo, Cristian Challu, Stefania La Vattiata, Max Mergenthaler, Artur Dubrawski (2023). “HINT: Hierarchical Mixture Networks For Coherent Probabilistic Forecasting”. Neural Information Processing Systems, submitted. Working Paper version available at arxiv.
• Taesung Kim and Jinhee Kim and Yunwon Tae and Cheonbok Park and Jang-Ho Choi and Jaegul Choo. “Reversible Instance Normalization for Accurate Time-Series Forecasting against Distribution Shift”. ICLR 2022.
• David Salinas, Valentin Flunkert, Jan Gasthaus, Tim Januschowski (2020). “DeepAR: Probabilistic forecasting with autoregressive recurrent networks”. International Journal of Forecasting.

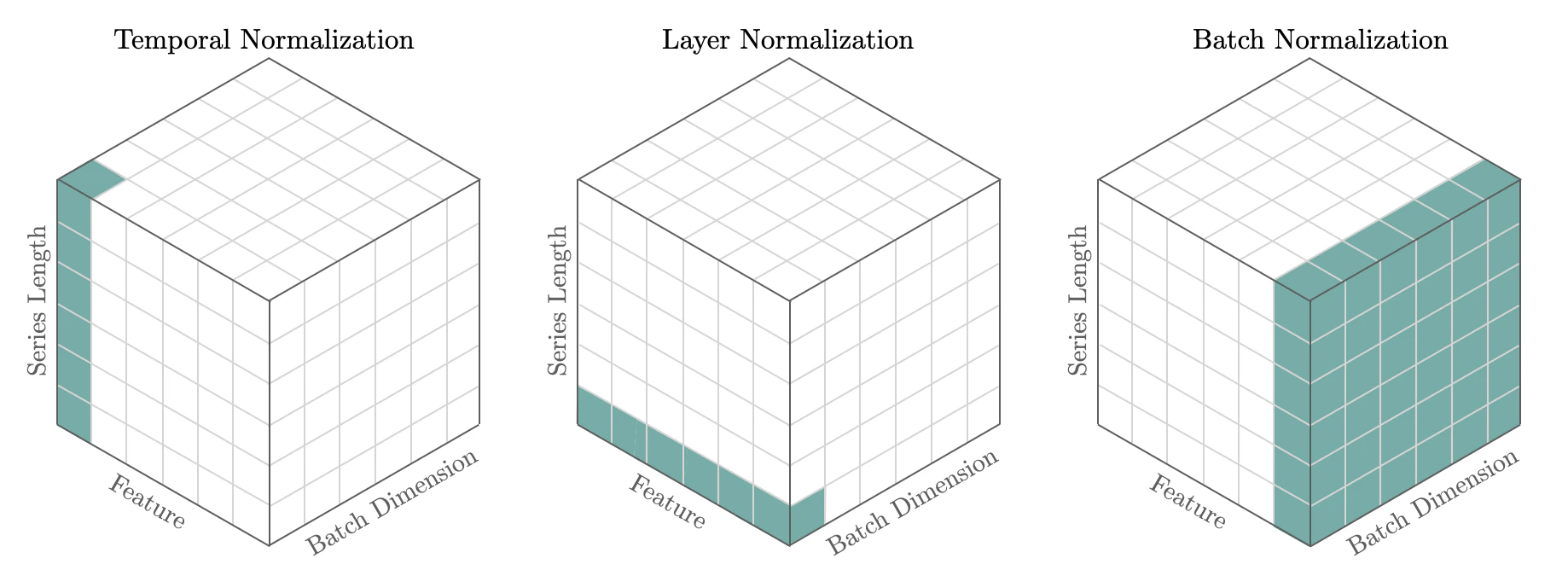

Figure 1. Illustration of temporal normalization (left), layer normalization (center) and batch normalization (right). The entries in green show the components used to compute the normalizing statistics.

1. Auxiliary Functions

masked_median

masked_median(x, mask, dim=-1, keepdim=True)

Masked Median

Compute the median of tensor x along dim, ignoring values where mask is False. x and mask need to be broadcastable.

Parameters:

Name	Type	Description	Default
x	Tensor	Tensor to compute median of along dim dimension.	required
mask	Tensor	Tensor bool with same shape as x, where x is valid and False where x should be masked. Mask should not be all False in any column of dimension dim to avoid NaNs from zero division.	required
dim	int	Dimension to take median of. Defaults to -1.	-1
keepdim	bool	Keep dimension of x or not. Defaults to True.	True

Returns:

Type	Description
torch.Tensor: Normalized values.

masked_mean

masked_mean(x, mask, dim=-1, keepdim=True)

Masked Mean

Compute the mean of tensor x along dimension, ignoring values where mask is False. x and mask need to be broadcastable.

Parameters:

Name	Type	Description	Default
x	Tensor	Tensor to compute mean of along dim dimension.	required
mask	Tensor	Tensor bool with same shape as x, where x is valid and False where x should be masked. Mask should not be all False in any column of dimension dim to avoid NaNs from zero division.	required
dim	int	Dimension to take mean of. Defaults to -1.	-1
keepdim	bool	Keep dimension of x or not. Defaults to True.	True

Returns:

Type	Description
torch.Tensor: Normalized values.

2. Scalers

minmax_statistics

minmax_statistics(x, mask, eps=1e-06, dim=-1)

MinMax Scaler

Standardizes temporal features by ensuring its range dweels between [0,1] range. This transformation is often used as an alternative to the standard scaler. The scaled features are obtained as:

$$\mathbf{z} = (\mathbf{x}_{[B,T,C]}-\mathrm{min}({\mathbf{x}})_{[B,1,C]})/ (\mathrm{max}({\mathbf{x}})_{[B,1,C]}- \mathrm{min}({\mathbf{x}})_{[B,1,C]})$$

Parameters:

Name	Type	Description	Default
x	Tensor	Input tensor.	required
mask	Tensor	Tensor bool, same dimension as x, indicates where x is valid and False where x should be masked. Mask should not be all False in any column of dimension dim to avoid NaNs from zero division.	required
eps	float	Small value to avoid division by zero. Defaults to 1e-6.	1e-06
dim	int	Dimension over to compute min and max. Defaults to -1.	-1

Returns:

Type	Description
torch.Tensor: Same shape as x, except scaled.

minmax1_statistics

minmax1_statistics(x, mask, eps=1e-06, dim=-1)

MinMax1 Scaler

Standardizes temporal features by ensuring its range dweels between [-1,1] range. This transformation is often used as an alternative to the standard scaler or classic Min Max Scaler. The scaled features are obtained as:

$$\mathbf{z} = 2 (\mathbf{x}_{[B,T,C]}-\mathrm{min}({\mathbf{x}})_{[B,1,C]})/ (\mathrm{max}({\mathbf{x}})_{[B,1,C]}- \mathrm{min}({\mathbf{x}})_{[B,1,C]})-1$$

Parameters:

Name	Type	Description	Default
x	Tensor	Input tensor.	required
mask	Tensor	Tensor bool, same dimension as x, indicates where x is valid and False where x should be masked. Mask should not be all False in any column of dimension dim to avoid NaNs from zero division.	required
eps	float	Small value to avoid division by zero. Defaults to 1e-6.	1e-06
dim	int	Dimension over to compute min and max. Defaults to -1.	-1

Returns:

Type	Description
torch.Tensor: Same shape as x, except scaled.

std_statistics

std_statistics(x, mask, dim=-1, eps=1e-06)

Standard Scaler

Standardizes features by removing the mean and scaling to unit variance along the dim dimension.

For example, for base_windows models, the scaled features are obtained as (with dim=1):

$$\mathbf{z} = (\mathbf{x}_{[B,T,C]}-\bar{\mathbf{x}}_{[B,1,C]})/\hat{\sigma}_{[B,1,C]}$$

Parameters:

Name	Type	Description	Default
x	Tensor	Input tensor.	required
mask	Tensor	Tensor bool, same dimension as x, indicates where x is valid and False where x should be masked. Mask should not be all False in any column of dimension dim to avoid NaNs from zero division.	required
eps	float	Small value to avoid division by zero. Defaults to 1e-6.	1e-06
dim	int	Dimension over to compute mean and std. Defaults to -1.	-1

Returns:

Type	Description
torch.Tensor: Same shape as x, except scaled.

robust_statistics

robust_statistics(x, mask, dim=-1, eps=1e-06)

Robust Median Scaler

Standardizes features by removing the median and scaling with the mean absolute deviation (mad) a robust estimator of variance. This scaler is particularly useful with noisy data where outliers can heavily influence the sample mean / variance in a negative way. In these scenarios the median and amd give better results.

For example, for base_windows models, the scaled features are obtained as (with dim=1):

$$\mathbf{z} = (\mathbf{x}_{[B,T,C]}-\textrm{median}(\mathbf{x})_{[B,1,C]})/\textrm{mad}(\mathbf{x})_{[B,1,C]}$$ $$\textrm{mad}(\mathbf{x}) = \frac{1}{N} \sum_{}|\mathbf{x} - \mathrm{median}(x)|$$

Parameters:

Name	Type	Description	Default
x	Tensor	Input tensor.	required
mask	Tensor	Tensor bool, same dimension as x, indicates where x is valid and False where x should be masked. Mask should not be all False in any column of dimension dim to avoid NaNs from zero division.	required
eps	float	Small value to avoid division by zero. Defaults to 1e-6.	1e-06
dim	int	Dimension over to compute median and mad. Defaults to -1.	-1

Returns:

Type	Description
torch.Tensor: Same shape as x, except scaled.

invariant_statistics

invariant_statistics(x, mask, dim=-1, eps=1e-06)

Invariant Median Scaler

Standardizes features by removing the median and scaling with the mean absolute deviation (mad) a robust estimator of variance. Aditionally it complements the transformation with the arcsinh transformation.

For example, for base_windows models, the scaled features are obtained as (with dim=1):

$$\mathbf{z} = (\mathbf{x}_{[B,T,C]}-\textrm{median}(\mathbf{x})_{[B,1,C]})/\textrm{mad}(\mathbf{x})_{[B,1,C]}$$ $$\mathbf{z} = \textrm{arcsinh}(\mathbf{z})$$

Parameters:

Name	Type	Description	Default
x	Tensor	Input tensor.	required
mask	Tensor	Tensor bool, same dimension as x, indicates where x is valid and False where x should be masked. Mask should not be all False in any column of dimension dim to avoid NaNs from zero division.	required
eps	float	Small value to avoid division by zero. Defaults to 1e-6.	1e-06
dim	int	Dimension over to compute median and mad. Defaults to -1.	-1

Returns:

Type	Description
torch.Tensor: Same shape as x, except scaled.

identity_statistics

identity_statistics(x, mask, dim=-1, eps=1e-06)

Identity Scaler

A placeholder identity scaler, that is argument insensitive.

Parameters:

Name	Type	Description	Default
x	Tensor	Input tensor.	required
mask	Tensor	Tensor bool, same dimension as x, indicates where x is valid and False where x should be masked. Mask should not be all False in any column of dimension dim to avoid NaNs from zero division.	required
eps	float	Small value to avoid division by zero. Defaults to 1e-6.	1e-06
dim	int	Dimension over to compute median and mad. Defaults to -1.	-1

Returns:

Type	Description
torch.Tensor: Original x.

3. TemporalNorm Module

TemporalNorm

TemporalNorm(scaler_type='robust', dim=-1, eps=1e-06, num_features=None)

Bases: Module

Temporal Normalization

Standardization of the features is a common requirement for many machine learning estimators, and it is commonly achieved by removing the level and scaling its variance. The TemporalNorm module applies temporal normalization over the batch of inputs as defined by the type of scaler.

$$\mathbf{z}_{[B,T,C]} = \textrm{Scaler}(\mathbf{x}_{[B,T,C]})$$

If scaler_type is revin learnable normalization parameters are added on top of the usual normalization technique, the parameters are learned through scale decouple global skip connections. The technique is available for point and probabilistic outputs.

$$\mathbf{\hat{z}}_{[B,T,C]} = \boldsymbol{\hat{\gamma}}_{[1,1,C]} \mathbf{z}_{[B,T,C]} +\boldsymbol{\hat{\beta}}_{[1,1,C]}$$

Parameters:

Name	Type	Description	Default
scaler_type	str	Defines the type of scaler used by TemporalNorm. Available [identity, standard, robust, minmax, minmax1, invariant, revin]. Defaults to “robust”.	‘robust’

dim (int, optional): Dimension over to compute scale and shift. Defaults to -1. eps (float, optional): Small value to avoid division by zero. Defaults to 1e-6. num_features (int, optional): For RevIN-like learnable affine parameters initialization. Defaults to None.

TemporalNorm.transform

transform(x, mask)

Center and scale the data.

Parameters:

Name	Type	Description	Default
x	Tensor	Tensor shape [batch, time, channels].	required
mask	Tensor	Tensor bool, shape [batch, time] where x is valid and False where x should be masked. Mask should not be all False in any column of dimension dim to avoid NaNs from zero division.	required

Returns:

Type	Description
torch.Tensor: Same shape as x, except scaled.

TemporalNorm.inverse_transform

inverse_transform(z, x_shift=None, x_scale=None)

Scale back the data to the original representation.

Parameters:

Name	Type	Description	Default
z	Tensor	Tensor shape [batch, time, channels], scaled.	required
x_shift	Tensor	Tensor shape [1, 1, channels], shift. Defaults to None.	None
x_scale	Tensor	Tensor shape [1, 1, channels], scale. Defaults to None.	None

Returns:

Type	Description
torch.Tensor: Original data.

Example

import numpy as np

# Declare synthetic batch to normalize
x1 = 10**0 * np.arange(36)[:, None]
x2 = 10**1 * np.arange(36)[:, None]

np_x = np.concatenate([x1, x2], axis=1)
np_x = np.repeat(np_x[None, :,:], repeats=2, axis=0)
np_x[0,:,:] = np_x[0,:,:] + 100

np_mask = np.ones(np_x.shape)
np_mask[:, -12:, :] = 0

print(f'x.shape [batch, time, features]={np_x.shape}')
print(f'mask.shape [batch, time, features]={np_mask.shape}')

# Validate scalers
x = 1.0*torch.tensor(np_x)
mask = torch.tensor(np_mask)
scaler = TemporalNorm(scaler_type='standard', dim=1)
x_scaled = scaler.transform(x=x, mask=mask)
x_recovered = scaler.inverse_transform(x_scaled)

plt.plot(x[0,:,0], label='x1', color='#78ACA8')
plt.plot(x[0,:,1], label='x2',  color='#E3A39A')
plt.title('Before TemporalNorm')
plt.xlabel('Time')
plt.legend()
plt.show()

plt.plot(x_scaled[0,:,0], label='x1', color='#78ACA8')
plt.plot(x_scaled[0,:,1]+0.1, label='x2+0.1', color='#E3A39A')
plt.title(f'TemporalNorm \'{scaler.scaler_type}\' ')
plt.xlabel('Time')
plt.legend()
plt.show()

plt.plot(x_recovered[0,:,0], label='x1', color='#78ACA8')
plt.plot(x_recovered[0,:,1], label='x2', color='#E3A39A')
plt.title('Recovered')
plt.xlabel('Time')
plt.legend()
plt.show()
