Probabilistic Reconciliation Methods Comparison

This notebook compares the different probabilistic reconciliation methods available in HierarchicalForecast: - Normality: Gaussian-based, parametric approach - Bootstrap: Non-parametric residual resampling - PERMBU: Empirical copula-based with rank permutation - Conformal: Distribution-free with coverage guarantees under exchangeability

# Install dependencies if needed
# !pip install hierarchicalforecast statsforecast

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt

from statsforecast.models import AutoARIMA
from statsforecast.core import StatsForecast

from hierarchicalforecast.utils import aggregate
from hierarchicalforecast.core import HierarchicalReconciliation
from hierarchicalforecast.methods import BottomUp, MinTrace

1. Load and Prepare Data

We use the Australian Tourism dataset for this example.

# Load tourism data
Y_df = pd.read_csv('https://raw.githubusercontent.com/Nixtla/transfer-learning-time-series/main/datasets/tourism.csv')
Y_df = Y_df.rename({'Trips': 'y', 'Quarter': 'ds'}, axis=1)
Y_df.insert(0, 'Country', 'Australia')
Y_df = Y_df[['Country', 'Region', 'State', 'Purpose', 'ds', 'y']]
Y_df['ds'] = Y_df['ds'].str.replace(r'(\d+) (Q\d)', r'\1-\2', regex=True)
Y_df['ds'] = pd.PeriodIndex(Y_df["ds"], freq='Q').to_timestamp()
Y_df.head()

	Country	Region	State	Purpose	ds	y
0	Australia	Adelaide	South Australia	Business	1998-01-01	135.077690
1	Australia	Adelaide	South Australia	Business	1998-04-01	109.987316
2	Australia	Adelaide	South Australia	Business	1998-07-01	166.034687
3	Australia	Adelaide	South Australia	Business	1998-10-01	127.160464
4	Australia	Adelaide	South Australia	Business	1999-01-01	137.448533

# Define hierarchical structure
spec = [
    ['Country'],
    ['Country', 'State'],
    ['Country', 'State', 'Region'],
]

Y_df, S_df, tags = aggregate(df=Y_df, spec=spec)
print(f"Hierarchy has {S_df.shape[0]} series ({S_df.shape[1]} bottom-level)")

Hierarchy has 85 series (77 bottom-level)

# Train/test split
Y_test_df = Y_df.groupby('unique_id').tail(8)
Y_train_df = Y_df.drop(Y_test_df.index)

print(f"Training: {len(Y_train_df)} observations")
print(f"Testing: {len(Y_test_df)} observations")

Training: 6120 observations
Testing: 680 observations

2. Compute Base Forecasts

# Fit base forecaster
fcst = StatsForecast(
    models=[AutoARIMA(season_length=4)],
    freq='QS',
    n_jobs=-1
)

# Get forecasts and fitted values for probabilistic methods
# Note: level is required for normality intervals to reverse-engineer sigmah
Y_hat_df = fcst.forecast(df=Y_train_df, h=8, fitted=True, level=[90])
Y_fitted_df = fcst.forecast_fitted_values()

3. Probabilistic Reconciliation Methods

Method Comparison Table

Method	Distributional Assumptions	Residual Usage	Reconciliation Timing	Coverage Guarantee	Hierarchy Requirement
Normality	Gaussian errors	Computes covariance from residuals	N/A (analytical)	Asymptotic	Any
Bootstrap	None	Block resamples raw residuals, then reconciles	After perturbation	Asymptotic	Any
PERMBU	None (uses empirical marginals)	Rank permutations for copula	Bottom-up aggregation	Asymptotic	Strictly hierarchical only
Conformal	Exchangeability	Scores from reconciled residuals	Before perturbation	Finite-sample: $(1-\alpha) \cdot n/(n+1)$	Any

Key Technical Differences

Bootstrap vs Conformal residual handling: - Bootstrap: Adds residual blocks to raw forecasts, then applies reconciliation (SP @ (y_hat + residuals)) - Conformal: Computes scores from reconciled forecasts, adds to reconciled predictions (y_rec + scores)

# Reconcile with different probabilistic methods
# Using MinTrace for most methods, BottomUp for PERMBU (which uses bottom-up aggregation internally)
reconcilers_mintrace = [MinTrace(method='mint_shrink')]
reconcilers_bottomup = [BottomUp()]

hrec_mintrace = HierarchicalReconciliation(reconcilers=reconcilers_mintrace)
hrec_bottomup = HierarchicalReconciliation(reconcilers=reconcilers_bottomup)

# Normality-based intervals
Y_rec_normality = hrec_mintrace.reconcile(
    Y_hat_df=Y_hat_df,
    Y_df=Y_fitted_df,
    S_df=S_df,
    tags=tags,
    level=[90],
    intervals_method='normality'
)
print("Normality reconciliation complete")

Normality reconciliation complete

# Bootstrap-based intervals
Y_rec_bootstrap = hrec_mintrace.reconcile(
    Y_hat_df=Y_hat_df,
    Y_df=Y_fitted_df,
    S_df=S_df,
    tags=tags,
    level=[90],
    intervals_method='bootstrap'
)
print("Bootstrap reconciliation complete")

Bootstrap reconciliation complete

# PERMBU-based intervals (requires strictly hierarchical structure and BottomUp reconciler)
Y_rec_permbu = hrec_bottomup.reconcile(
    Y_hat_df=Y_hat_df,
    Y_df=Y_fitted_df,
    S_df=S_df,
    tags=tags,
    level=[90],
    intervals_method='permbu'
)
print("PERMBU reconciliation complete")

PERMBU reconciliation complete

# Conformal-based intervals
Y_rec_conformal = hrec_mintrace.reconcile(
    Y_hat_df=Y_hat_df,
    Y_df=Y_fitted_df,
    S_df=S_df,
    tags=tags,
    level=[90],
    intervals_method='conformal'
)
print("Conformal reconciliation complete")

Conformal reconciliation complete

4. Visualize Prediction Intervals

def plot_intervals(series_id, ax, rec_df, method_name, color, col_mean):
    """Helper to plot prediction intervals for a series."""
    df = rec_df[rec_df['unique_id'] == series_id].copy()

    col_lo = f'{col_mean}-lo-90'
    col_hi = f'{col_mean}-hi-90'

    ax.fill_between(df['ds'], df[col_lo], df[col_hi], alpha=0.3, color=color, label=f'{method_name} 90% PI')
    ax.plot(df['ds'], df[col_mean], color=color, linewidth=2)

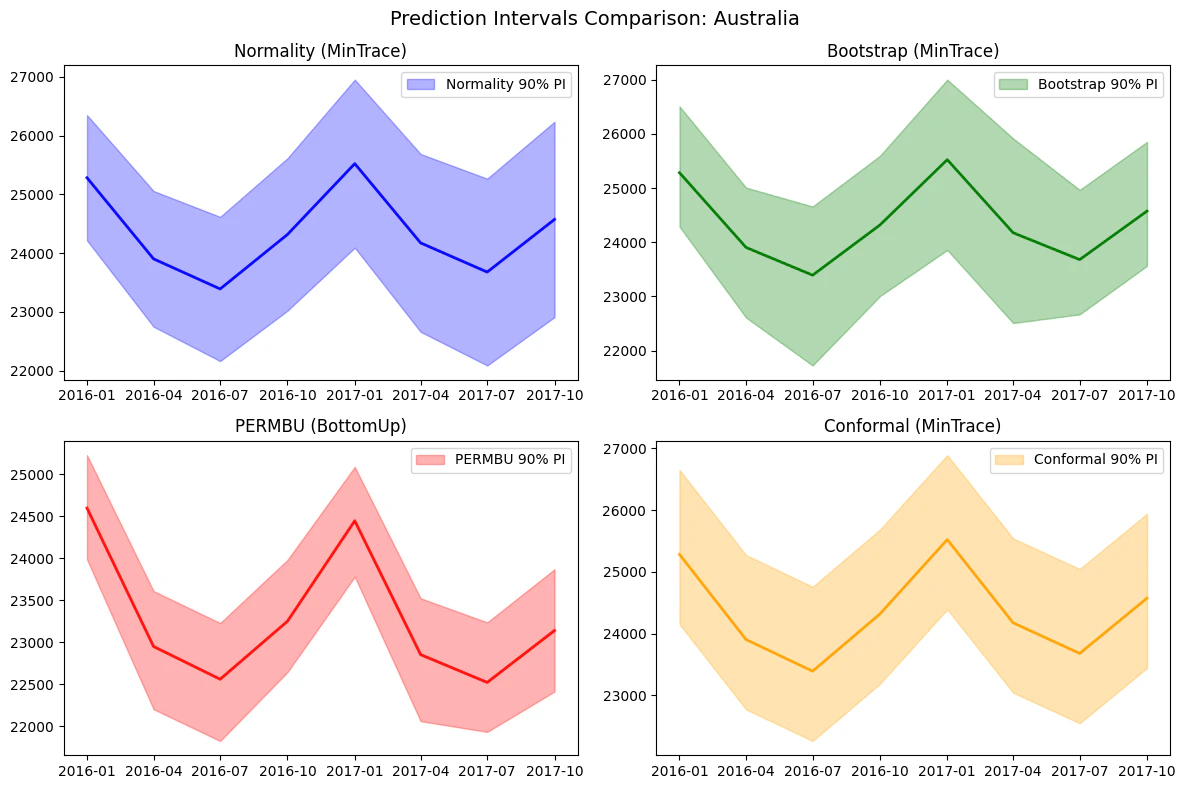

# Plot comparison for top-level series
series_id = 'Australia'

fig, axes = plt.subplots(2, 2, figsize=(12, 8))

# MinTrace methods use 'AutoARIMA/MinTrace_method-mint_shrink' column
col_mintrace = 'AutoARIMA/MinTrace_method-mint_shrink'
# BottomUp (PERMBU) uses 'AutoARIMA/BottomUp' column
col_bottomup = 'AutoARIMA/BottomUp'

plot_intervals(series_id, axes[0, 0], Y_rec_normality, 'Normality', 'blue', col_mintrace)
axes[0, 0].set_title('Normality (MinTrace)')
axes[0, 0].legend()

plot_intervals(series_id, axes[0, 1], Y_rec_bootstrap, 'Bootstrap', 'green', col_mintrace)
axes[0, 1].set_title('Bootstrap (MinTrace)')
axes[0, 1].legend()

plot_intervals(series_id, axes[1, 0], Y_rec_permbu, 'PERMBU', 'red', col_bottomup)
axes[1, 0].set_title('PERMBU (BottomUp)')
axes[1, 0].legend()

plot_intervals(series_id, axes[1, 1], Y_rec_conformal, 'Conformal', 'orange', col_mintrace)
axes[1, 1].set_title('Conformal (MinTrace)')
axes[1, 1].legend()

fig.suptitle(f'Prediction Intervals Comparison: {series_id}', fontsize=14)
plt.tight_layout()
plt.show()

5. Evaluate Probabilistic Forecasts

We evaluate the probabilistic forecasts using the Scaled Continuous Ranked Probability Score (CRPS), which measures the quality of probabilistic predictions. Lower values indicate better calibrated prediction intervals.

from utilsforecast.losses import scaled_crps
from hierarchicalforecast.evaluation import evaluate

# Prepare evaluation dataframes by merging with test actuals
Y_rec_normality_eval = Y_rec_normality.merge(Y_test_df, on=['unique_id', 'ds'])
Y_rec_bootstrap_eval = Y_rec_bootstrap.merge(Y_test_df, on=['unique_id', 'ds'])
Y_rec_permbu_eval = Y_rec_permbu.merge(Y_test_df, on=['unique_id', 'ds'])
Y_rec_conformal_eval = Y_rec_conformal.merge(Y_test_df, on=['unique_id', 'ds'])

# Define evaluation tags for each hierarchy level
eval_tags = {
    'Country': tags['Country'],
    'State': tags['Country/State'],
    'Region': tags['Country/State/Region'],
}

# Evaluate each method
def eval_method(df, model_name, method_label):
    """Evaluate a single method and return results."""
    result = evaluate(
        df=df,
        tags=eval_tags,
        train_df=Y_train_df,
        metrics=[scaled_crps],
        models=[model_name],
        level=[90],
    )
    result = result.rename(columns={model_name: method_label})
    return result

# Evaluate all methods
eval_normality = eval_method(Y_rec_normality_eval, 'AutoARIMA/MinTrace_method-mint_shrink', 'Normality')
eval_bootstrap = eval_method(Y_rec_bootstrap_eval, 'AutoARIMA/MinTrace_method-mint_shrink', 'Bootstrap')
eval_permbu = eval_method(Y_rec_permbu_eval, 'AutoARIMA/BottomUp', 'PERMBU')
eval_conformal = eval_method(Y_rec_conformal_eval, 'AutoARIMA/MinTrace_method-mint_shrink', 'Conformal')

# Combine results
evaluation = eval_normality.copy()
evaluation['Bootstrap'] = eval_bootstrap['Bootstrap']
evaluation['PERMBU'] = eval_permbu['PERMBU']
evaluation['Conformal'] = eval_conformal['Conformal']

# Format and display
print("Scaled CRPS by Hierarchy Level (lower is better):")
print("=" * 60)
evaluation

Scaled CRPS by Hierarchy Level (lower is better):
============================================================

	level	metric	Normality	Bootstrap	PERMBU	Conformal
0	Country	scaled_crps	0.027256	0.028403	0.086038	0.028478
1	State	scaled_crps	0.033189	0.031690	0.065403	0.031761
2	Region	scaled_crps	0.046120	0.050435	0.055291	0.049632
3	Overall	scaled_crps	0.044681	0.048412	0.056605	0.047701

6. Method Pros and Cons

Normality

Pros: - Fast computation using closed-form solutions - Well-understood theoretical properties - Works with any reconciliation method and hierarchy structure - Supports different covariance estimators (ols, wls_var, mint_shrink, etc.)

Cons: - Assumes Gaussian distribution of errors - May underestimate uncertainty for heavy-tailed or skewed distributions - Covariance estimation can be unstable with limited data

---

Bootstrap

Pros: - Non-parametric: no distributional assumptions required - Captures empirical error distribution shape (skewness, heavy tails) - Preserves temporal correlation through block resampling - Works with any hierarchy structure

Cons: - Requires sufficient historical residuals (at least horizon + some buffer) - Computationally more expensive than Normality - Coverage is asymptotic (no finite-sample guarantees)

---

PERMBU

Pros: - Preserves empirical dependencies using copula-based approach - Respects marginal distributions at each level - Captures complex cross-series dependencies

Cons: - Only works with strictly hierarchical structures (not grouped hierarchies) - Computationally intensive for large hierarchies - Requires careful handling of the permutation ordering

---

Conformal

Pros: - Distribution-free: no parametric assumptions required - Finite-sample coverage guarantee under exchangeability - Simple interpretation: intervals based on empirical quantiles of scores - Works with any hierarchy structure

Cons: - Requires proper calibration set: Coverage guarantees assume the calibration data is independent from training data. When using in-sample residuals (fitted values from the same data used to train the model), this assumption is violated, potentially leading to overly optimistic (narrow) intervals - Exchangeability assumption may not hold for time series with trends or structural breaks - Coverage guarantees are marginal (per-series), not simultaneous across the hierarchy - May produce wider intervals than well-specified parametric methods

⚠️ Important Caveat for Conformal: In this example (and the default HierarchicalForecast API), we use in-sample fitted values as the calibration set. This is convenient but technically violates the split conformal prediction framework. For rigorous coverage guarantees, you should use a held-out validation set that was not used for model training.

7. Recommendations

Scenario	Recommended Method	Notes
Quick analysis, errors appear Gaussian	Normality	Fastest, well-understood
Unknown error distribution, general use	Bootstrap	Safe default, no assumptions
Strict hierarchies, need correlation preservation	PERMBU	Best for capturing dependencies
Have proper held-out calibration set	Conformal	Valid finite-sample guarantees
Using in-sample residuals, want simplicity	Bootstrap or Normality	Conformal caveats apply with in-sample data

Decision Flowchart

1. Is your hierarchy strictly hierarchical (no cross-classifications)?
   • Yes → Consider PERMBU if you need correlation preservation
   • No → Use Normality, Bootstrap, or Conformal
2. Do you have a proper held-out calibration set?
   • Yes → Conformal provides finite-sample coverage guarantees
   • No (using in-sample) → Bootstrap or Normality are more appropriate
3. Do your residuals appear Gaussian?
   • Yes → Normality is fast and efficient
   • No / Unknown → Bootstrap adapts to any distribution
